400W Single Axis Actuator 250MM Stroke Connect BMH111 Cutting Head

Ask Lasest Price
Brand Name :	ZANE
Model Number :	F136
Certification :	CE,ISO
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Negotiation

Add to Cart

Product Details
Company Profile

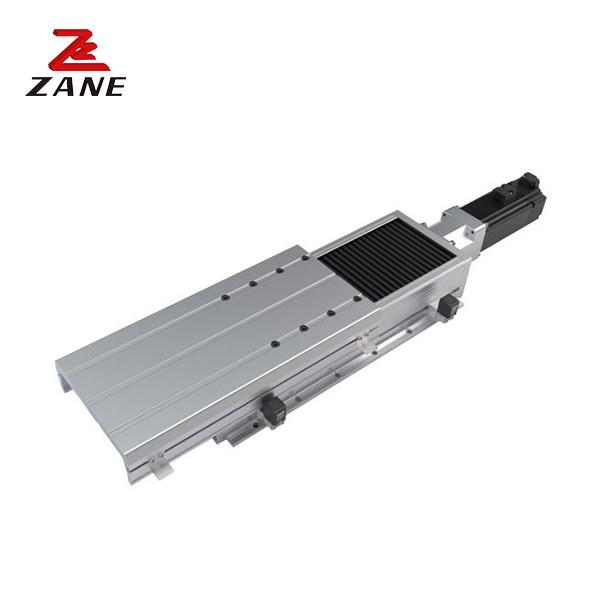

400W Single Axis Actuator 250MM Stroke Connect BMH111 Cutting Head

Product Description:

Single Axis Actuator is a robotic motion component that is widely used in automation equipment and photovoltaic industry, laser equipment, and other industrial environments. It has a stroke length of 250mm, a driving power of 400W, and a speed of 500mm/s, and is applicable for cutting heads BT240 and BMH111. It has been designed for reliable performance and precision, and its applications include robotic motion control, robotic arm positioning, and other industrial automation applications. The Single Axis Actuator is a robust and reliable one-axis actuator, which provides accurate linear motion control, making it ideal for precision motion control applications.

Technical Parameters:

Driver power(W)		400W
Ball screw (16) mm lead		P05:5	P10:10	P20:20
Maximum speed(mm/s):		250	500	1000
Maximum handling weight(kg)	Level	60kg	50kg	40kg
	Perpendicularity	40kg	35kg	30kg
Repeated positioning accuracy (mm):		Class C +0.02mm; P level +0.01mm
Range of travel(mm):		The range is 50 to 1500mm
Load moment(N.m )		Mx:50; My:70; Mz:70
Load mechanism		GEH15 Dual track
Driving mechanism		Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5
Base material		Hard extruded aluminum profile, luster itself
Installation surface accuracy requirements		Less than 0.05mm
Dust proof design		Full seal dust proof
