Product Description:
The Single Axis Actuator is a linear actuation system for
mechanical motion devices. It is made of high-quality aluminum
alloy, and its model number is F190P. It is suitable for automation
equipment, photovoltaic industry, and laser equipment. It has a
maximum speed of 500mm/s, and is compatible with the BLT641 cutting
head. This Single Axis Actuator is a reliable, efficient, and
cost-effective linear actuation system that can meet the needs of
various types of mechanical motion devices.
Technical Parameters:
| Driver power(W) | 750W |
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 |
| Maximum speed(mm/s): | 250 | 500 | 1000 |
| Maximum handling weight(kg) | Level | 120kg | 100kg | 50kg |
| Perpendicularity | 60kg | 50kg | 30kg |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm |
| Range of travel(mm): | The range is 50 to 500mm |
| Load moment(N.m ) | Mx:110; My:150; Mz:120 |
| Load mechanism | GEH20 Dual track |
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 |
| Base material | Hard extruded aluminum profile, luster itself |
| Installation surface accuracy requirements | Less than 0.05mm |
| Dust proof design | Full seal dust proof |

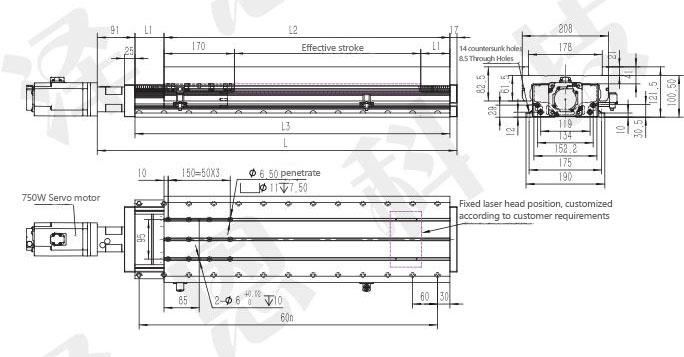

| Stroke(S) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| L1 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 |
| L2 | 295 | 350 | 415 | 470 | 525 | 580 | 635 | 690 | 745 |
| L3 | 330 | 390 | 480 | 520 | 580 | 640 | 700 | 760 | 820 |
| L | 438 | 498 | 568 | 628 | 688 | 748 | 808 | 868 | 928 |
Characteristics:
1. Linear drive, iron core linear motor without cogging effect.
2. Excellent contrast ratio of size and force
3. Double linear guides, small moving mass and high thrust.
4. Near-zero stabilizing vibration strengthens low-speed stability
and ultra-short setting
