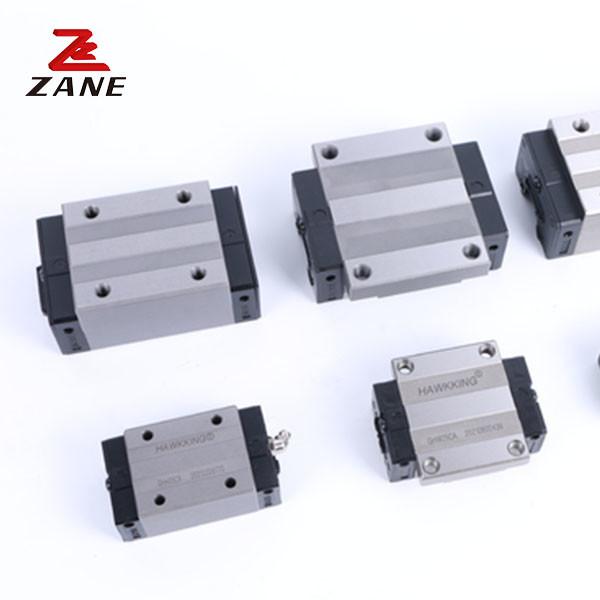

HGW20HA Linear Motion Guide Taiwan W Type Hiwin Linear HG Series

Ask Lasest Price
Brand Name :	ZANE
Model Number :	HGW20CA,HGW2CHA
Certification :	CE，ISO
Price :	Please contact for a quote
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Three days at the soonest after order confirmation

Add to Cart

Product Details
Company Profile

HGW20HA Linear Motion Guide Taiwan W Type Hiwin Linear HG Series

HGW20CA replacement Taiwan HIWIN linear guide HGW20HA Features of HG Series

linear slide rail is a kind of rolling guide, it is composed of steel ball between slide block and the slide rail for the infinite scroll circulation, make the load platform can easily along the slide rail with high precision linear motion, the coefficient of friction can be reduced to 1/50 of the traditional sliding guide, make it can easily reach mu m class location accuracy.Between slide block and the slide rail making yuan at the end of the design, make the linear slide rail can be under the direction of the up and down or so and so on various load at the same time, the recycling of patent system and streamlined structure design makes HIWIN linear slide rail with more smooth and low noise.

Model	Combination size (mm)			Block size(mm)													Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment					weight
																											Mr kN-m	Mp kN-m			My kN-m	block kg		slide kg/m
	H	Hi	N	W	B	Bi	c	U	L	Kl	G	M (A/B)	T	Ti	h2	h3	Wr	Hr	D	h	d	P	E	(mm)	C(kN)	C0(kN)
GHW15CA	24	4.3	16	47	38	4.5	30	39.4	61.4	8	5.3	M5/ φ4.5	6	8.9	3.95	3.7	15	15	7.5	5.3	4.5	60	20	M4xl6	11. 38	25.31	0.17		0.15	0.15		0.17	1.45
GHW20CA	30	4.6	21.5	63	53	5	40	50.5	77.5	10.25	12	M6/φ6	8	10	6	7	20	17.5	9.5	8.5	6	60	20	M5xl6	17.75	37.84	0.38		0.27	0.27		0.40	2.21
GHW20HA								65.2	92.2	17.6															21.18	48.84	0.48		0.47	0.47		0.52
GHW25CA	36	5.5	23.5	70	57	6.5	45	58	84	11.8	12	M8/φ77	8	14	6	9	23	22	11	9	7	60	20	M6x20	26.48	56.19	0.64		0.51	0.51		0.59	3.21
GHW25HA								78.6	104.6	22.1															32.75	76.00	0.87		0.88	0.88		0.80
GHW30CA	42	6	31	90	72	9	52	70	97.4	14.25	12	M10/φ9	8.5	16	6.5	10.8	28	26	14	12	9	80	20	M8x25	38.74	83.06	1.06		0.85	0.85		1.09	4.47
GHW30HA								93	120.4	25.75															47.27	110.13	1.40		1.47	1.47		1.44
GHW35CA	48	7.5	33	100	82	9	62	80	112.4	14.6	12	M10/φ9	10.1	18	9	12.6	34	29	14	12	9	80	20	M8x25	49.52	102.87	1.73		1.20	1.20		1.56	6.30
GHW35HA								105.8	138.2	27.5															60.21	136.31	2.29		2.08	2.08		2.06
GW45CA	60	9.5	37.5	120	100	10	80	97	139.4	13	12.9	M12/φ11	15.1	22	8.5	20.5	45	38	20	17	14	105	22.5	M12x35	77.57	155.93	3.01		2.35	2.35		2.79	10.41
GHW45HA								128.8	171.2	28.9															94.54	207.12	4.00		4.07	4.07		369
GHW55CA	70	13	43.5	140	116	12	95	117.7	166.7	17.35	12.9	M14/φ14	17.5	26.5	12	19	53	44	23	20	16	120	30	M14x45	114.44	227.81	5.66		4.06	4.06		4.52	15.08
GHW55HA								155.8	204.8	36.4															139.35	301.26	7.49		7.01	7.01		5.96
GHW65CA	90	15	53.5	170	142	14	110	144.2	200.2	23.1	12.9	M16/φ16	25	37.5	15	15	63	53	26	22	18	150	35	M16x50	163.63	324.71	10.02		6.44	6.44		9.17	21.18
GHW65HA								203.6	259.6	52.8															208.36	457.15	14.15		11.12	11.12		12.89
