Name: HGW20 Linear Rails Cnc Stainless Steel 3000mm Linear Rail ISO
Brand: ZANE
Price: 1 USD

Ask Lasest Price
Brand Name :	ZANE
Model Number :	ZANE-ghw
Certification :	CE，ISO
Price :	Please contact for a quote
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Three days at the soonest after order confirmation

Add to Cart

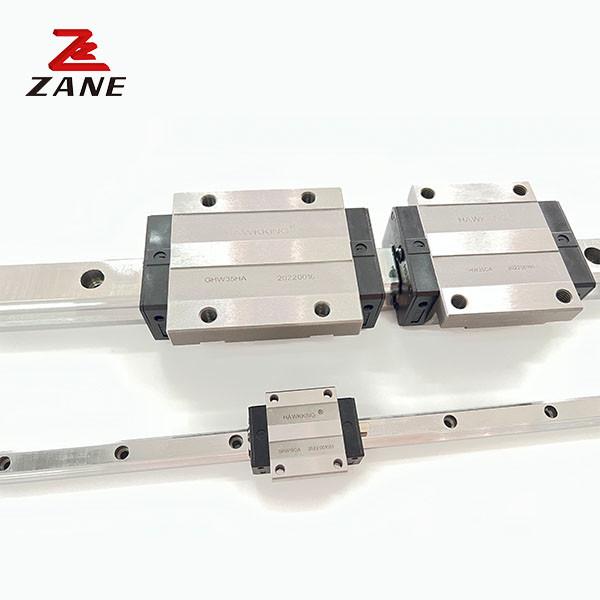

Linear rail HGW20 slide HGW20ca cnc linear guide with block set

Linear rail Feature:

1, S55C high carbon steel material for the rail

2, 20CrMo material for the block

3, P grade tolerance

4, customized length of the linear rail

5, HGW and GHH series linear sliders

6, easy interchanged into each other or HIWIN parts

7, easy maintenance

8, Low noise but smooth well

Model	Combination size (mm)			Block size(mm)													Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment					weight
																											Mr kN-m	Mp kN-m			My kN-m	block kg		slide kg/m
	H	Hi	N	W	B	Bi	c	U	L	Kl	G	M (A/B)	T	Ti	h2	h3	Wr	Hr	D	h	d	P	E	(mm)	C(kN)	C0(kN)
GHW15CA	24	4.3	16	47	38	4.5	30	39.4	61.4	8	5.3	M5/ φ4.5	6	8.9	3.95	3.7	15	15	7.5	5.3	4.5	60	20	M4xl6	11. 38	25.31	0.17		0.15	0.15		0.17	1.45
GHW20CA	30	4.6	21.5	63	53	5	40	50.5	77.5	10.25	12	M6/φ6	8	10	6	7	20	17.5	9.5	8.5	6	60	20	M5xl6	17.75	37.84	0.38		0.27	0.27		0.40	2.21
GHW20HA								65.2	92.2	17.6															21.18	48.84	0.48		0.47	0.47		0.52
GHW25CA	36	5.5	23.5	70	57	6.5	45	58	84	11.8	12	M8/φ77	8	14	6	9	23	22	11	9	7	60	20	M6x20	26.48	56.19	0.64		0.51	0.51		0.59	3.21
GHW25HA								78.6	104.6	22.1															32.75	76.00	0.87		0.88	0.88		0.80
GHW30CA	42	6	31	90	72	9	52	70	97.4	14.25	12	M10/φ9	8.5	16	6.5	10.8	28	26	14	12	9	80	20	M8x25	38.74	83.06	1.06		0.85	0.85		1.09	4.47
GHW30HA								93	120.4	25.75															47.27	110.13	1.40		1.47	1.47		1.44
GHW35CA	48	7.5	33	100	82	9	62	80	112.4	14.6	12	M10/φ9	10.1	18	9	12.6	34	29	14	12	9	80	20	M8x25	49.52	102.87	1.73		1.20	1.20		1.56	6.30
GHW35HA								105.8	138.2	27.5															60.21	136.31	2.29		2.08	2.08		2.06
GW45CA	60	9.5	37.5	120	100	10	80	97	139.4	13	12.9	M12/φ11	15.1	22	8.5	20.5	45	38	20	17	14	105	22.5	M12x35	77.57	155.93	3.01		2.35	2.35		2.79	10.41
GHW45HA								128.8	171.2	28.9															94.54	207.12	4.00		4.07	4.07		369
GHW55CA	70	13	43.5	140	116	12	95	117.7	166.7	17.35	12.9	M14/φ14	17.5	26.5	12	19	53	44	23	20	16	120	30	M14x45	114.44	227.81	5.66		4.06	4.06		4.52	15.08
GHW55HA								155.8	204.8	36.4															139.35	301.26	7.49		7.01	7.01		5.96
GHW65CA	90	15	53.5	170	142	14	110	144.2	200.2	23.1	12.9	M16/φ16	25	37.5	15	15	63	53	26	22	18	150	35	M16x50	163.63	324.71	10.02		6.44	6.44		9.17	21.18
GHW65HA								203.6	259.6	52.8															208.36	457.15	14.15		11.12	11.12		12.89
