Heavy Duty HIWIN Replacement Linear Guides GHH20CA Precision CNC Machine 25mm

Ask Lasest Price
Brand Name :	ZANE
Model Number :	GHH20CA
Certification :	CE，ISO
Price :	negotiate
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Three days at the soonest after order confirmation

Add to Cart

Product Details
Company Profile

Heavy Duty HIWIN Replacement Linear Guides GHH20CA Precision CNC Machine 25mm

Domestic HIWIN Replacement Linear Guides GHH20CA Precision CNC Machine 25mm Heavy Duty

1. Description

HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

2. Specification

Model	Combination size (mm)			Block size(mm)												Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment			weight
																										Mr kN^n	MP kNf	My kNF	block kg	slide kg/n
	H	HI	N	W	B	BI	C	Li	L	KI	G	Mxl	T	h2	h3	WR	HR	D	h	d	P	E	(mm)	C(kN)	Co(kN)
GHH15CA	28	4.3	9.5	34	26	4	26	39.4	61.4	10	5.3	M4x5	6	7.95	7.7	15	15	7.5	5.3	4.5	60	20	M4xl6	11.38	25.31	0.17	0.15	0.15	0.18	1.45
GHH20CA	30	4.6	12	44	32	6	36	50.5	77.5	12.25	12	M5x6	8	6	7	20	17.5	9.5	8.5	6	60	20	M5xl6	17.75	37.84	0.38	0.27	0.27	0.30	2.21
GHH20HA							50	65.2	92.2	12.6														21.18	48.84	0.48	0.47	0.47	0.39
GHH25CA	40	5.5		48	35	6.5	35	58	84	16.8	12	M6x8	8	10		23	22	11	9	7	60	20	M6x20	26.48	56.19	0.64	0.51	0.51	0. 51	3.21
GHH25HA			12.5				50	78.6	104.6	19.6														32. 75	76.00	0.87	0.88	0.88	0.69
GHH30CA	45	6	16	60	40	10	40	70	97.4	20.25	12	M8xl0	8.5	9.5		28	26	14	12	9	80	20		38.74	83.06	1.06	0.85	0.85	0.88	4. 47
GHH30HA							60	93	120.4	21.75					13.8								M8x2ij	47.27	110.13	1.40	1.47	1.47	1.16
GHH35CA	55		18	70	50	10	50	80	112.4	20.6	12			16	19.6	34	29	14	12	9	80	20		49.52	102.87	1.73	1.20	1. 20	1.45	6. 30
GHH35HA		1.5					72	105.8	138.2	22.5		M8xl2												60.21	136.31	2.29	2.08	2.08	1.92
GHH45CA	70	9.5		86	60	13	60	97	139.4	23		M10xl7	16			45	38	20	17	14	105		M12x35	77.57	155.93	3.01	2.35	2.35	2.73	10.41
GHH45HA			20.5				80	128.8	171.2	28.9				L8.	30.5							22.5		94.54	207.12	4.00	4.07	4.07	3.61
GHH55CA	80			100	75		75	117.7	166.7	27.35		M12xl8		22	29	53	44	23	20	16	120	30	M14x45	114.44	227. 81	5.66	4.06	4.06	4.17	15.08
GHH55HA		13	23. 5			12. 5	95	155.8	204.8	36.4	12.9													139.35	301.26	7.49	7.01	7.01	5.49
GHH65CA	90	15		126	76	25	70	144.2	200.2	43.1			25	15	15	63	53	26	22	18	150	35	M16x50	163.63	324.71	10.02	6.44	6.44	7.00	21.18
GHH65HA			31.5				120	203.6	259.6	47.8	12.9	M16x20												208.36	457.15	14.15	11.12	11.12	9.82

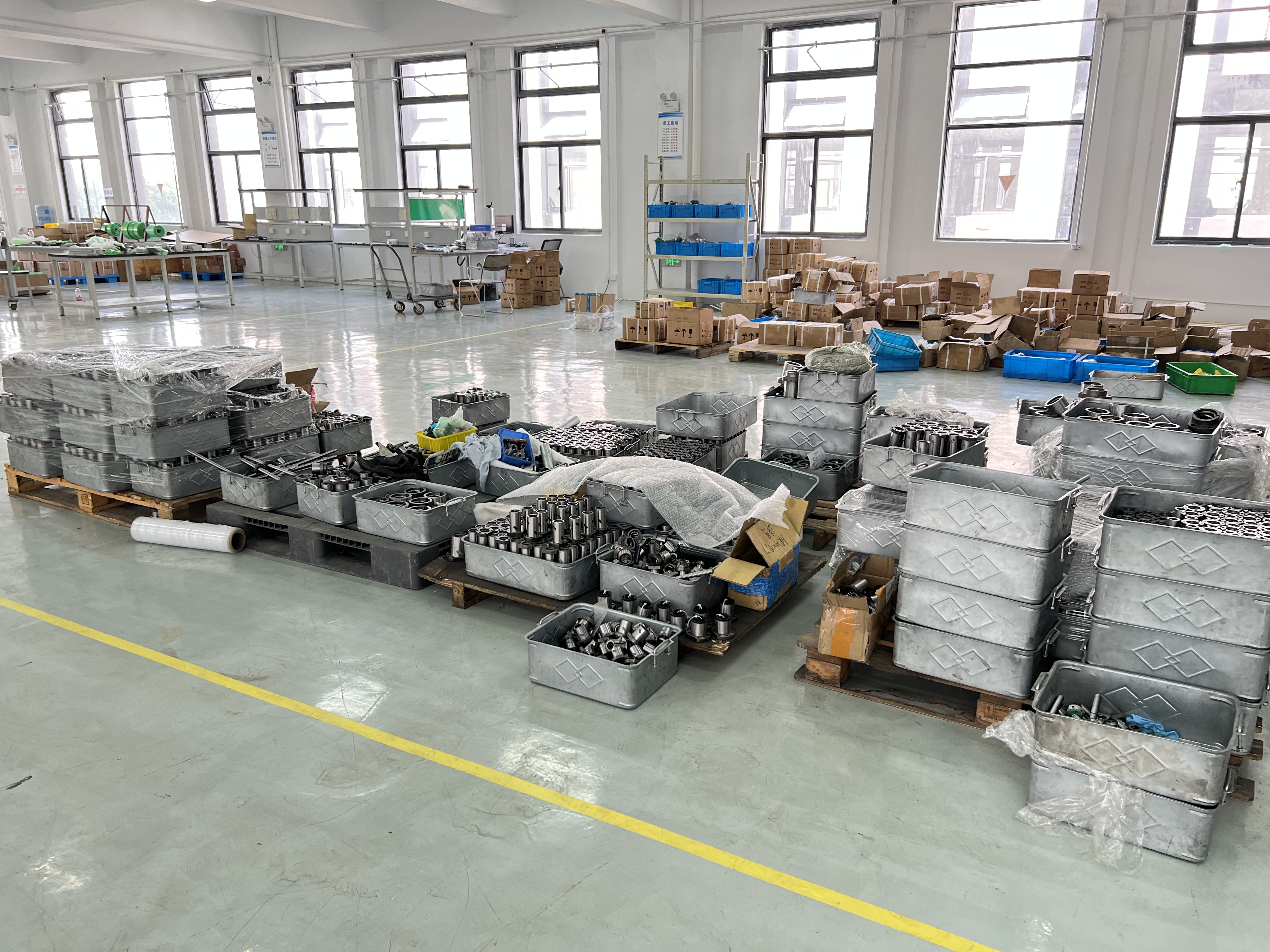

3. Our company
