Domestic HIWIN Replacement Linear Slide Rail GEW20CA For Lathe Equipment

Ask Lasest Price
Brand Name :	ZANE
Model Number :	GEW20CA
Certification :	CE，ISO
Price :	Please contact for a quote
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Three days at the soonest after order confirmation

Add to Cart

Product Details
Company Profile

Domestic HIWIN Replacement Linear Slide Rail GEW20CA For Lathe Equipment

Domestic HIWIN Replacement Linear Slide Rail GEW20CA For Lathe Equipment

1.Advantage

SMALL SOUND: Innovative slider technology, smooth, low friction, silent operation

ACCURACY: Precise production standards, high accuracy of the trajectory

STABILITY: Can withstand the load in all directions, long service life; Equipped with four-direction equal load characteristics and self-aligning function

BENDING RESISTANCE: Strong bending resistance, difficultly deformed and twisted, ensuring linear motion

2.Specification

Model	Combination size (mm)			Block size(mm)														Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment			weight
																												Mr kN-m	Mp kN-m	My kN-m	block kg	slide Kg/m
	H	Hi	N	W	B	Bi	C	L1	L	Ki	K2	G	M	T	Ti	h2	h3	Wr	Hr	D	h	d	P	E	(nnn)	C(kN)	Co(kN)
GEW15SA	24	4.5	18.5	52	41	5.5	-	23.1	40.1	14.8	3.5	5.7	M5/φ4.5	5	7	5.5	6	15	12.5	6	4.5	3.5	60	20	M3xl6	5.35	9.40	0.08	0.04	0.04	0.12	1.25
GEW15CA							26	39.8	56.8	10.15																7.83	16.19	0.13	0.10	0.10	0.21
GEW20SA	28	6	19.5	59	49	5	-	29	50	18.75	415	12	M6/φ5.5	7	9	6	6	20	15.5	9.5	8.5	6	60	20	M5xl6	7.23	12.74	0.13	0.06	0.06	0.19	2.08
GEW20CA							32	48.1	69.1	12.3																10.31	21.13	0.22	0.16	0.16	0.32
GEW25SA GEW25CA	33	7	25	73	60	6.5	一	35.5	59.1	21.9	4.55	12	M8/φ7	g	10	8	8	23	18	11	9	7	60	20	M6x20	11.40	19.50	0.23	0.12	0.12	0.35	2.67
							35	59	82.6	16.15																16.27	32.40	0.38	0.32	0.32	0.59
GEW30SA	42	10	31	90	72	9	-	41.5	69.5	26.75	6	12	M10/φ9	7	10	8	9	28	23	11	9	7	80	20	M6x25	16.42	28.10	0.40	0.21	0.21	0.62	4.35
GEW30CA							40	70.1	98.1	21.05																23.70	47.46	0.68	0.55	0.55	1.04
GEW35SA	48	11	33	100	82	9	-	45	75	28.5	7	7	M10/φ9	10	13	&5	&5	34	27.5	14	12	9	80	20	M6x25	16.42	28.10	0.40	0.21	0.21	0.62	4.35
GEW35CA							50	78	108	20																23.70	47.46	0.68	0.55	0.55	1.04

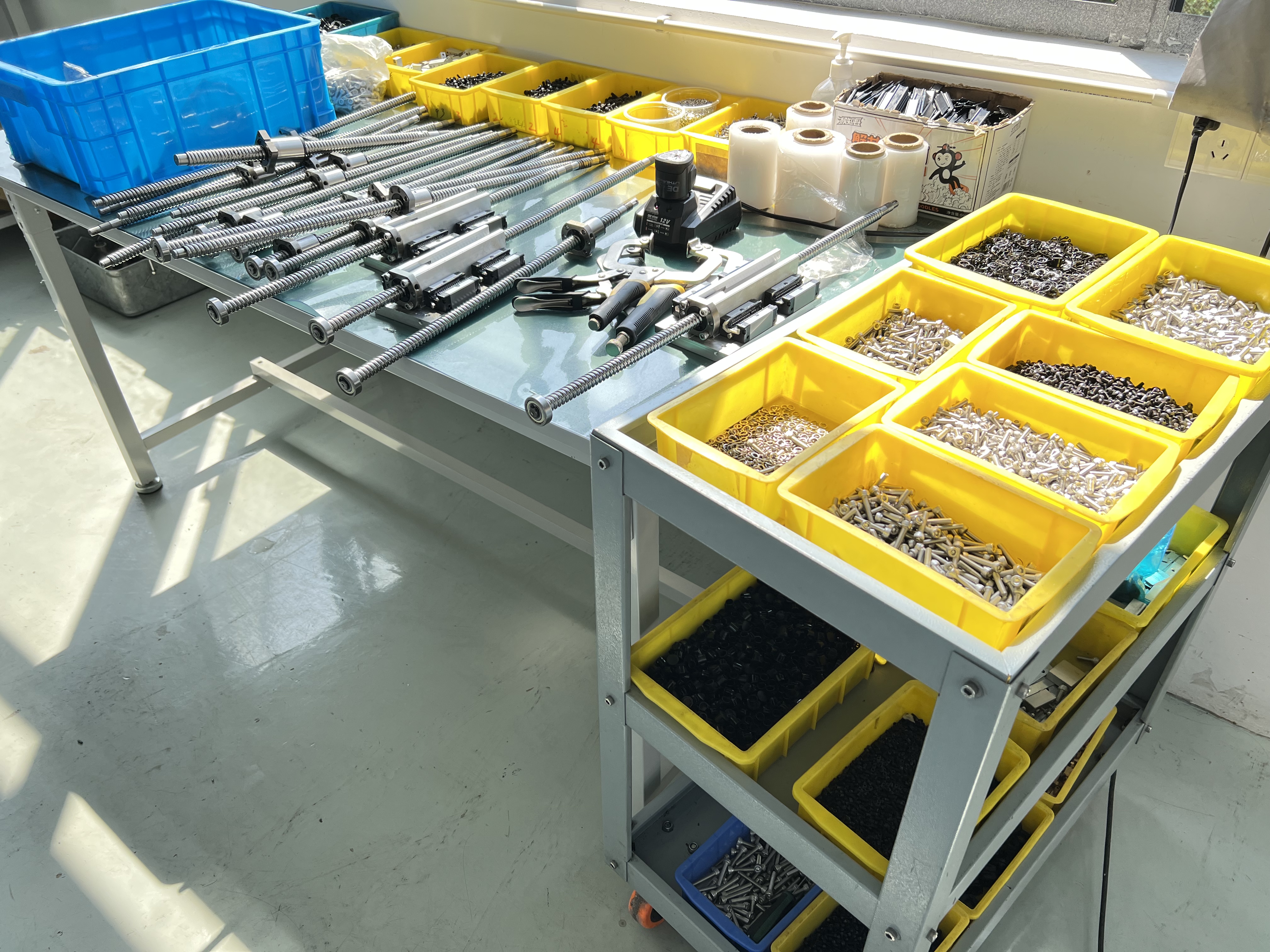

3.Processing operation area

Parts area
