Product Description:
With the inclusion of advanced technical knowledge and innovative
machines in all our processes, we are engaged in offering Helical
Rack and Pinion Drive. The offered drive is manufactured by supreme
class material and cutting edge techniques by vendor’s workforce in
adherence with set norms. Offered drive is checked on various
parameters in order to dispatch a flawless range to customer’s end.
We provide this drive to our patrons in different specifications as
per requirements of our clients.
Yuan Yi Chang Machinery has 40 years of experience, with ISO 9001
certificate and work projects with Industrial Technology Research
Institute. Corresponding to smart manufacturing trend globally, YYC
offers different series of transmission parts and equipment
including Rack, Guideway Rack, Pinion, Roller, Planetary Reducers,
Backlash Free Reducers.

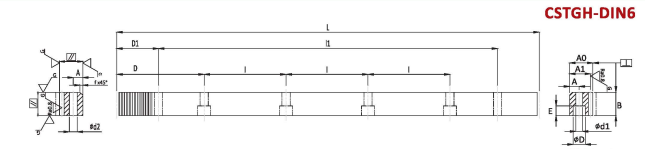

Technical Parameters:
Code |
Module | L |
No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | 0dl | 0D | E | DI | 11 | 0d2 | f | Fta kN | KG |
| CSTGH01505-DIN6 | 1.5 | 499.51 | 106 | 19 | 19 | 17.5 | 62.44 124.88 | 4 | 8 | 6 | 9.5 | 7 | 29.0 | 441.50 | 5.7 | 1.5 | 3.38 | 1.3 |
| CSTGH01510-DIN6 | 1.5 | 999.03 | 212 | 19 | 19 | 17.5 | 62.44 124.88 | 8 | 8 | 6 | 9.5 | 7 | 29.0 | 941.00 | 5.7 | 1.5 | 3.38 | 2.6 |
| CSTGH02005-DIN6 | 2 | 502.65 | 80 | 24 | 24 | 22 | 62.83 125.66 | 4 | 8 | 7 | 11 | 7 | 31.3 | 440.10 | 5.7 | 2 | 5.69 | 2.1 |
| CSTGH02010-DIN6 | 2 | 1005.31 | 160 | 24 | 24 | 22 | 62.83 125.66 | 8 | 8 | 7 | 11 | 7 | 31.3 | 942.70 | 5.7 | 2 | 5.69 | 4.1 |
| CSTGH02020-DIN6 | 2 | 2010.62 | 320 | 24 | 24 | 22 | 62.83 125.66 | 16 | 8 | 7 | 11 | 7 | 31.3 | 1948.00 | 5.7 | 2 | 5.69 | 8.2 |
| CSTGH02505-DIN6 | 2.5 | 502.65 | 64 | 24 | 24 | 21.5 | 62.83 125.66 | 4 | 9 | 7 | 11 | 7 | 31.3 | 440.10 | 5.7 | 2 | 7.12 | 2.1 |
| CSTGH02510-DIN6 | 2.5 | 1005.31 | 128 | 24 | 24 | 21.5 | 62.83 125.66 | 8 | 9 | 7 | 11 | 7 | 31.3 | 942.70 | 5.7 | 2 | 7.12 | 4.1 |
| CSTGH02520-DIN6 | 2.5 | 2010.62 | 256 | 24 | 24 | 21.5 | 62.83 125.66 | 16 | 9 | 7 | 11 | 7 | 31.3 | 1948.00 | 5.7 | 2 | 7.12 | 8.2 |
| CSTGH03005-DIN6 | 3 | 508.94 | 54 | 29 | 29 | 26 | 63.62 127.23 | 4 | 9 | 10 | 15 | 9 | 34.4 | 440.10 | 7.7 | 2 | 10.32 | 3.0 |
| CSTGH03010-DIN6 | 3 | 1017.88 | 108 | 29 | 29 | 26 | 63.62 127.23 | 8 | 9 | 10 | 15 | 9 | 34.4 | 949.10 | 7.7 | 2 | 10.32 | 6.1 |
| CSTGH03020-DIN6 | 3 | 2035.75 | 216 | 29 | 29 | 26 | 63.62 127.23 | 16 | 9 | 10 | 15 | 9 | 34.4 | 1967.00 | 7.7 | 2 | 10.32 | 12.2 |
| CSTGH04005-DIN6 | 4 | 502.65 | 40 | 39 | 39 | 35 | 62.83 125.66 | 4 | 12 | 10 | 15 | 9 | 37.5 | 427.70 | 7.7 | 2 | 18.50 | 5.4 |
| CSTGH04010-DIN6 | 4 | 1005.31 | 80 | 39 | 39 | 35 | 62.83 125.66 | 8 | 12 | 10 | 15 | 9 | 37.5 | 930.30 | 7.7 | 2 | 18.50 | 10.9 |
| CSTGH04020-DIN6 | 4 | 2010.62 | 160 | 39 | 39 | 35 | 62.83 125.66 | 16 | 12 | 10 | 15 | 9 | 37.5 | 1935.60 | 7.7 | 2 | 18.50 | 21.7 |
| CSTGH05005-DIN6 | 5 | 502.65 | 32 | 49 | 39 | 34 | 62.83 125.66 | 4 | 12 | 14 | 20 | 13 | 30.1 | 442.30 | 11.7 | 3 | 29.06 | 6.8 |
| CSTGH05010-DIN6 | 5 | 1005.31 | 64 | 49 | 39 | 34 | 62.83 125.66 | 8 | 12 | 14 | 20 | 13 | 30.1 | 945.00 | 11.7 | 3 | 29.06 | 13.7 |
| CSTGH05020-DIN6 | 5 | 2010.62 | 128 | 49 | 39 | 34 | 62.83 125.66 | 16 | 12 | 14 | 20 | 13 | 30.1 | 1950.40 | 11.7 | 3 | 29.06 | 27.3 |
| CSTGH06005-DIN6 | 6 | 508.94 | 27 | 59 | 49 | 43 | 63.62 127.23 | 4 | 16 | 18 | 26 | 17 | 31.4 | 446.10 | 15.7 | 3 | 41.99 | 10.5 |
| CSTGH06010-DIN6 | 6 | 1017.88 | 54 | 59 | 49 | 43 | 63.62 127.23 | 8 | 16 | 18 | 26 | 17 | 31.4 | 955.00 | 15.7 | 3 | 41.99 | 20.9 |
| CSTGH06020-DIN6 | 6 | 2035.75 | 108 | 59 | 49 | 43 | 63.62 127.23 | 16 | 16 | 18 | 26 | 17 | 31.4 | 1973.00 | 15.7 | 3 | 41.99 | 41.8 |
| CSTGH08005-DIN6 | 8 | 502.65 | 20 | 79 | 79 | 71 | 62.83 125.66 | 4 | 25 | 22 | 33 | 21 | 26.6 | 449.45 | 19.7 | 4 | 74.96 | 22.3 |
| CSTGH08005-DIN6 | 8 | 1005.31 | 40 | 79 | 79 | 71 | 62.83 125.66 | 8 | 25 | 22 | 33 | 21 | 26.6 | 952.00 | 19.7 | 4 | 74.96 | 44.6 |
| CSTGH08020-DIN6 | 8 | 2010.61 | 80 | 79 | 79 | 71 | 62.83 125.66 | 16 | 25 | 22 | 33 | 21 | 26.6 | 1957.40 | 19.7 | 4 | 74.96 | 89.1 |
Application:
YYC major clients include all kinds of industries and fields such
as CNC machines, machine centers, wood-cutting machines, printing
machines, cutting machines, gantry milling machines, grinding
machines, drilling machines, bending machines, robotic arms,
automatic storage equipment, automatic upload & unload track, ATV,
aircraft carrier, semiconductor plant, cranes, and so on.
