Nidec Shimpo CNC Speed Increasing Gear Reducer Gearbox VRT Series
Product Description:
SHIMPO continues to press forward with the development of
high-precision gear technology that fills the evolving needs of our
customer base. Shimpo power transmission technology which combines
both mechanical and electronic engineering advancement has a proven
track record of helping customers move towards the factory
automation by supplying them. Able servo planetary gear reducer the
able gear reducer is the perfect solution for servomotor
applications such as packaging machines, gantries, injection
molding machines, pick and place, and linear slides. If you have
any questions or require additional information about any of the
products mentioned within these press releases, please do not
hesitate to contact us.
Technical Parameters:

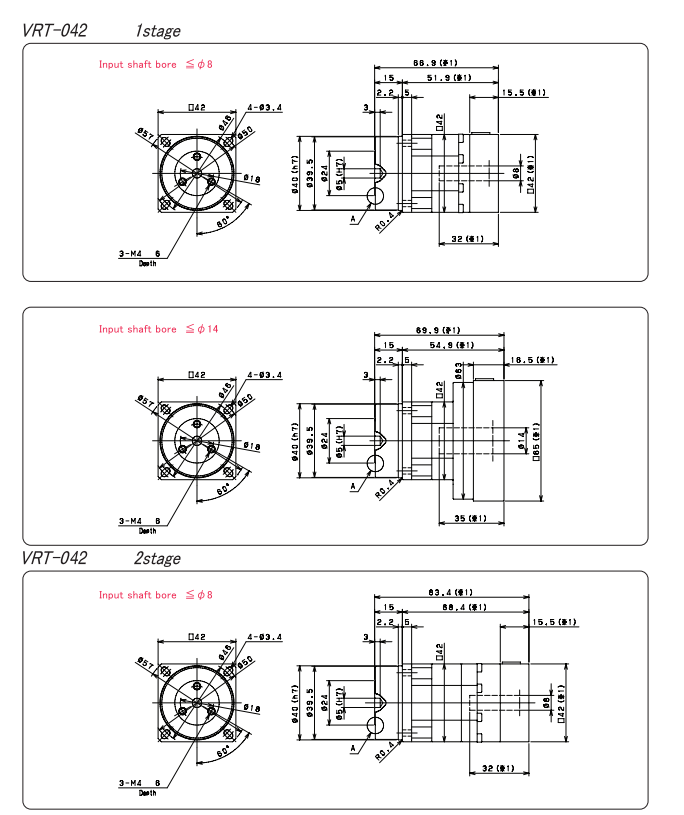

Frame Size | Stage | Ratio | Nominal Output torque | Maximum Output torque | Emergency stop torque | Nominal Input speed | Maximum Input speed | Permitted Radial load | Permitted Axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] |
| 042 | 1 Single | 4 | 9 | 18 | 35 | 4000 | 8000 | 290 | 300 |
| 5 | 9 | 18 | 35 | 4000 | 8000 | 310 | 330 |
| 6 | 9 | 18 | 35 | 4000 | 8000 | 330 | 360 |
| 7 | 9 | 18 | 35 | 4000 | 8000 | 350 | 380 |
| 8 | 9 | 18 | 35 | 4000 | 8000 | 360 | 410 |
| 9 | 6 | 12 | 30 | 4000 | 8000 | 380 | 430 |
| 10 | 6 | 12 | 30 | 4000 | 8000 | 390 | 450 |
| 2 Double | 16 | 9 | 18 | 35 | 4000 | 8000 | 460 | 500 |
| 20 | 9 | 18 | 35 | 4000 | 8000 | 490 | 500 |
| 25 | 9 | 18 | 35 | 4000 | 8000 | 530 | 500 |
| 28 | 9 | 18 | 35 | 4000 | 8000 | 550 | 500 |
| 35 | 9 | 18 | 35 | 4000 | 8000 | 290 | 500 |
| 40 | 9 | 18 | 35 | 4000 | 8000 | 620 | 500 |
| 45 | 6 | 12 | 30 | 4000 | 8000 | 650 | 500 |
| 50 | 9 | 18 | 35 | 4000 | 8000 | 670 | 500 |
| 60 | 9 | 18 | 35 | 4000 | 8000 | 710 | 500 |
| 70 | 9 | 18 | 35 | 4000 | 8000 | 750 | 500 |
| 80 | 9 | 18 | 35 | 4000 | 8000 | 780 | 500 |
| 90 | 6 | 12 | 30 | 4000 | 8000 | 810 | 500 |
| 100 | 6 | 12 | 30 | 4000 | 8000 | 840 | 500 |
Frame Size | Stage | Ratio | Maximum Radial load | Maximum Axial load | Weight | Moment Of inertia ≤14 | Moment Of inertia ≤19 |
| [N] | [N] | [kg] | [Kgc㎡] | [Kgc㎡] |
| 042 | 1 Single | 4 | 1000 | 500 | 0.5 | 0.044 | 0.083 |
| 5 | 1000 | 500 | 0.038 | 0.077 |
| 6 | 1000 | 500 | 0.035 | 0.074 |
| 7 | 1000 | 500 | 0.033 | 0.072 |
| 8 | 1000 | 500 | 0.032 | 0.071 |
| 9 | 1000 | 500 | 0.031 | 0.070 |
| 10 | 1000 | 500 | 0.031 | 0.069 |
2 Double | 16 | 1000 | 500 | 0.7 | 0.039 | - |
| 20 | 1000 | 500 | 0.034 | - |
| 25 | 1000 | 500 | 0.034 | - |
| 28 | 1000 | 500 | 0.038 | - |
| 35 | 1000 | 500 | 0.034 | - |
| 40 | 1000 | 500 | 0.030 | - |
| 45 | 1000 | 500 | 0.034 | - |
| 50 | 1000 | 500 | 0.030 | - |
| 60 | 1000 | 500 | 0.030 | - |
| 70 | 1000 | 500 | 0.030 | - |
| 80 | 1000 | 500 | 0.030 | - |
| 90 | 1000 | 500 | 0.030 | - |
| 100 | 1000 | 500 | 0.030 | - |
FEATURES:
1. High rigity & High torque
The shell of VRTseries precision planetary gearbox is made of high
quality alloy steel and the bearing adopts the bearings. The high
quality material ensure the high transmission torque and large load
capacity.
2. Small vibration & Low noise
The structure of planetary reducer and helical gears with small
vibration and low noise can maximize the strength of the VRT
precision planetary gearbox.
3. High positioning accuracy
The VRT series planetary speed reducer is manufactured with
advanced processing technology at home and broad which ensure the
high precision.
4. Long service life
Advanced synthetic grease with good durability is adopted and there
is no requirement for long time maintenance. It has good
sealing and no grease leakage.
