Nidec Shimpo VRL Series Inline Planetary Gearbox For Industrial

Ask Lasest Price
Brand Name :	Nidec
Model Number :	VRL
Certification :	CE,ISO
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100,000 pcs per month
Delivery Time :	Negotiation

Add to Cart

Product Details
Company Profile

Nidec Shimpo VRL Series Inline Planetary Gearbox For Industrial

Product Description:

The VRL series is the all-rounder in the planetary gearbox marketplace. With helical gearing, robust internal construction, smooth operation and high torque density, this product is truly best-in-class. 5 arc-min backlash allows the VRL to be applied to a wide range of applications where accuracy and dynamics are in play, but cost is of concern.

The VRL is an excellent choice for servo applications in packaging, handling and automation systems. A variety of standard wash down and food grade options are available, making it an attractive option for the toughest environments. We offer the broadest selection of frame sizes and ratios, giving our customers more flexibility than ever before. Industry standard mounting dimensions allow the VRL to be implemented in legacy machine designs, saving our customers valuable time.

Technical Parameters:

Frame size	Stage	Ratio	Nominal output torque	Maximum output torque	Emergenc y stop torque	Nominal input speed	Maximum input speed	Permitted radial load	Permitted axial load
			[Nm]	[Nm]	[Nm]	[rpm]	[rpm]	[N]	[N]
070B	Single	3	18	35	80	3000	6000	430	310
		4	27	50	100	3000	6000	470	360
		5	27	50	100	3000	6000	510	390
		6	27	50	100	3000	6000	540	430
		7	27	50	100	3000	6000	570	460
		8	27	50	100	3000	6000	600	480
		9	18	35	80	3000	6000	620	510
		10	18	35	80	3000	6000	640	530
	Double	15	18	35	80	3000	6000	740	630
		16	27	50	100	3000	6000	750	650
		20	27	50	100	3000	6000	810	720
		25	27	50	100	3000	6000	870	790
		28	27	50	100	3000	6000	910	830
		30	18	35	80	3000	6000	930	860
		35	27	50	100	3000	6000	980	920
		40	27	50	100	3000	6000	1000	970
		45	18	35	80	3000	6000	1100	1000
		50	27	50	100	3000	6000	1100	1100
		60	27	50	100	3000	6000	1200	1100
		70	27	50	100	3000	6000	1200	1100
		80	27	50	100	3000	6000	1200	1100
		90	18	35	80	3000	6000	1200	1100
		100	18	35	80	3000	6000	1200	1100

Frame size	Stage	Ratio	Maximum radial load	Maximum axial load	Weight	Moment of inertia (≤φ8)	Moment of inertia (≤φ14)	Moment of inertia (≤φ19)
Frame size	Stage	Ratio	[N]	[N]	[kg]	[kgcm²]	[kgcm²]	[kgcm²]
070B	Single	3	1200	1100	1.5	0.14	0.22	0.43
		4	1200	1100		0.095	0.17	0.38
		5	1200	1100		0.077	0.16	0.36
		6	1200	1100		0.068	0.15	0.36
		7	1200	1100		0.062	0.14	0.35
		8	1200	1100		0.059	0.14	0.35
		9	1200	1100		0.057	0.14	0.34
		10	1200	1100		0.056	0.14	0.34
	Double	15	1200	1100	1.7	0.055	0.14	一
		16	1200	1100		0.057	0.14	一
		20	1200	1100		0.054	0.13	一
		25	1200	1100		0.053	0.13	一
		28	1200	1100		0.055	0.14	一
		30	1200	1100		0.049	0.13	一
		35	1200	1100		0.053	0.13	一
		40	1200	1100		0.049	0.13	一
		45	1200	1100		0.053	0.13	一
		50	1200	1100		0.049	0.13	一
		60	1200	1100		0.049	0.13	一
		70	1200	1100		0.049	0.13	一
		80	1200	1100		0.049	0.13	一
		90	1200	1100		0.049	0.13	一
		100	1200	1100		0.049	0.13	一

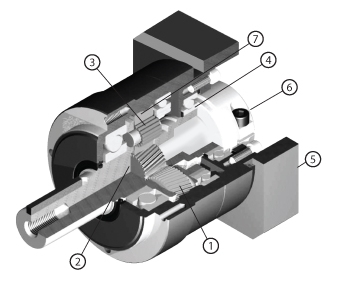

FEATURES:

1.Carburized helical gears with proprietary secondary finishing process for higher accuracy and smooth, quiet operation. 40% higher tooth surface area than the industry standard

2.One piece output shaft and planet carrier with two bearings straddling the planet gears. Higher stiffness, torque capacity and safety factor, with guaranteed alignment of gearing

3.Uncaged needle roller bearings provide excellent torque density and torsional rigidity. 43% larger bearing surface area compared to the rest of the industry

4.Unique labyrinth input seal design greatly reduces heat and increases system efficiency. IP65 protection is available for wash down applications

5.Optimized mounting system with active centering on motor pilot diameter guarantees alignment of motor. Motor can be installed in any orientation

6.True concentric motor shaft clamping connection, optimized for your specific motor. Reduced inertia for dynamic performance and balanced for high speed operation

7.Ring gear machined directly into the housing, not welded or pressed in. Provides greater concentricity and elimination of speed fluctuation
