Product Description:
SHIMPO continues to press forward with the development of
high-precision gear technology that fills the evolving needs of our
customer base. Shimpo power transmission technology which combines
both mechanical and electronic engineering advancement has a proven
track record of helping customers move towards the factory
automation by supplying them. Able servo planetary gear reducer the
able gear reducer is the perfect solution for servomotor
applications such as packaging machines, gantries, injection
molding machines, pick and place, and linear slides. If you have
any questions or require additional information about any of the
products mentioned within these press releases, please do not
hesitate to contact us.

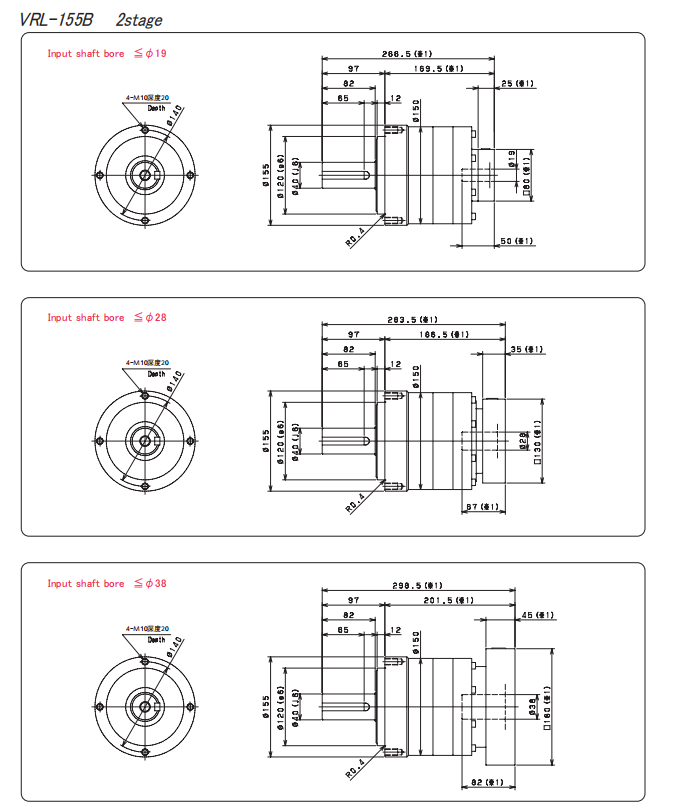

Technical Parameters:
Frame
size |
Stage |
Ratio |
Nomina
output torque |
Maximum
output torque |
Emergency
s top torque |
Nominal
inpu t speed |
Maximum
input speed |
Permi tted
radial load |
Permitted
axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] |
| 120B |
Single | 3 | 240 | 470 | 1000 | 2000 | 4000 | 3200 | 2400 |
| 4 | 240 | 700 | 1250 | 2000 | 4000 | 3500 | 2700 |
| 5 | 360 | 700 | 1250 | 2000 | 4000 | 3800 | 3000 |
| 6 | 360 | 700 | 1250 | 2000 | 4000 | 4000 | 3300 |
| 7 | 360 | 700 | 1250 | 2000 | 4000 | 4200 | 3500 |
| 8 | 360 | 700 | 1250 | 2000 | 4000 | 4400 | 3700 |
| 9 | 240 | 470 | 1000 | 2000 | 4000 | 4600 | 3900 |
| 10 | 240 | 470 | 1000 | 2000 | 4000 | 4700 | 4100 |
Double | 15 | 240 | 470 | 1000 | 2000 | 4000 | 5400 | 4900 |
| 16 | 360 | 700 | 1250 | 2000 | 4000 | 5500 | 5000 |
| 20 | 360 | 700 | 1250 | 2000 | 4000 | 6000 | 5500 |
| 25 | 360 | 700 | 1250 | 2000 | 4000 | 6400 | 6100 |
| 28 | 360 | 700 | 1250 | 2000 | 4000 | 6700 | 6400 |
| 30 | 240 | 470 | 1000 | 2000 | 4000 | 6800 | 6600 |
| 35 | 360 | 700 | 1250 | 2000 | 4000 | 7200 | 7000 |
| 40 | 360 | 700 | 1250 | 2000 | 4000 | 7500 | 7500 |
| 45 | 240 | 470 | 1000 | 2000 | 4000 | 7800 | 7900 |
| 50 | 360 | 700 | 1250 | 2000 | 4000 | 8100 | 8200 |
| 60 | 360 | 700 | 1250 | 2000 | 4000 | 8600 | 8200 |
| 70 | 360 | 700 | 1250 | 2000 | 4000 | 9100 | 8200 |
| 80 | 360 | 700 | 1250 | 2000 | 4000 | 9100 | 8200 |
| 90 | 240 | 470 | 1000 | 2000 | 4000 | 9100 | 8200 |
| 100 | 240 | 470 | 1000 | 2000 | 4000 | 9100 | 8200 |
Frame
size |
Stage |
Ratio |
Maximum
radia l l oad |
Maximum
axial load |
Weight |
Moment
of inertia
(≤φ19) |
Moment
of inertia
(≤φ28) |
Moment
of inertia
(≤φ38) |
Moment
of inertia
(≤φ48) |
| [N] | [N] | [kg] | [kgcm²] | [kgcm²] | [kgcm²] | [kgcm²] |
| 120B |
Single | 3 | 9100 | 8200 | 16 | - | 12 | 20 | 42 |
| 4 | 9100 | 8200 | - | 7.5 | 15 | 37 |
| 5 | 9100 | 8200 | - | 5.8 | 14 | 36 |
| 6 | 9100 | 8200 | - | 4.9 | 13 | 35 |
| 7 | 9100 | 8200 | - | 4.1 | 12 | 34 |
| 8 | 9100 | 8200 | - | 3.8 | 12 | 34 |
| 9 | 9100 | 8200 | - | 3.6 | 11 | 34 |
| 10 | 9100 | 8200 | - | 3.5 | 11 | 34 |
Double | 15 | 9100 | 8200 | 18 | 1.3 | 3.2 | 11 | - |
| 16 | 9100 | 8200 | 1.5 | 3.5 | 11 | - |
| 20 | 9100 | 8200 | 1.2 | 3.1 | 11 | - |
| 25 | 9100 | 8200 | 1.1 | 3.1 | 11 | - |
| 28 | 9100 | 8200 | 1.4 | 3.3 | 11 | - |
| 30 | 9100 | 8200 | 0.85 | 2.8 | 10 | - |
| 35 | 9100 | 8200 | 1.1 | 3.1 | 11 | - |
| 40 | 9100 | 8200 | 0.83 | 2.8 | 10 | - |
| 45 | 9100 | 8200 | 1.1 | 3.0 | 11 | - |
| 50 | 9100 | 8200 | 0.81 | 2.8 | 10 | - |
| 60 | 9100 | 8200 | 0.81 | 2.8 | 10 | - |
| 70 | 9100 | 8200 | 0.80 | 2.8 | 10 | - |
| 80 | 9100 | 8200 | 0.80 | 2.8 | 10 | - |
| 90 | 9100 | 8200 | 0.80 | 2.8 | 10 | - |
| 100 | 9100 | 8200 | 0.80 | 2.8 | 10 | - |
Highlights:
- The all-rounder for mid to high end motion control applications
- The widest range of frame sizes and ratios available in the market
- Best-In-class backlash (≤5 arc-min)
- Broad range of mounting adapters offer a simple, precise attachment
to any motor
- Maintenance-free solution that is lubricated for life
- High performance grease allows flexible mounting in any orientation
- Industry standard mounting dimensions
