Product Description:
A valuable alternative for applications requiring high positional
accuracy and dynamic performance. The VRB is a <3 arc-min
gearbox that offers a through hole mounting design, making it
easier to assemble onto various equipment. This product is an ideal
fit for various belt drive and actuator applications found
throughout the packaging and assembly cell automation markets.
Various standard wash down and food grade options are available,
making the VRB an attractive choice for the toughest environments.
We offer the broadest selection of frame sizes and ratios, with
immediate availability on most configurations. Industry standard
mounting dimensions allow the VRB to be employed in legacy
equipment designs, saving our customers time and money.

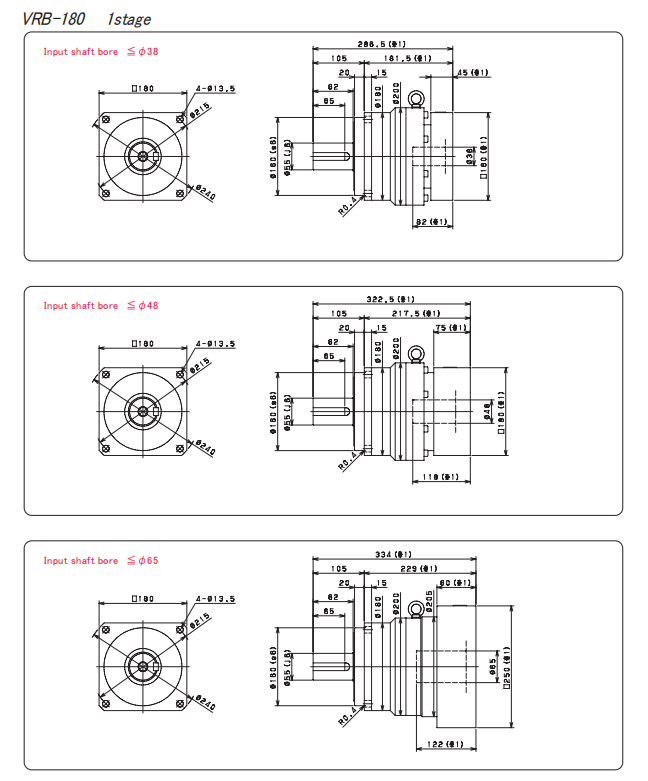

Technical Parameters:
Frame size | Stage | Ratio | Nominal output torque | Maximum output torque | Emergency stop torque | Nominal input speed | Maximum input speed | Permitted radial load | Permitted axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] |
180 |
1 Single | 3 | 500 | 970 | 2200 | 1500 | 3000 | 5600 | 4300 |
| 4 | 750 | 1400 | 2750 | 1500 | 3000 | 6200 | 4900 |
| 5 | 750 | 1400 | 2750 | 1500 | 3000 | 6700 | 5400 |
| 6 | 750 | 1400 | 2750 | 1500 | 3000 | 7100 | 5800 |
| 7 | 750 | 1400 | 2750 | 1500 | 3000 | 7400 | 6300 |
| 8 | 750 | 1400 | 2750 | 1500 | 3000 | 7800 | 6600 |
| 9 | 500 | 970 | 2200 | 1500 | 3000 | 8100 | 7000 |
| 10 | 500 | 970 | 2200 | 1500 | 3000 | 8400 | 7300 |
| Double | 15 | 500 | 970 | 2200 | 1500 | 3000 | 9600 | 8700 |
| 16 | 750 | 1400 | 2750 | 1500 | 3000 | 9800 | 8900 |
| 20 | 750 | 1400 | 2750 | 1500 | 3000 | 11000 | 9900 |
| 25 | 750 | 1400 | 2750 | 1500 | 3000 | 11000 | 11000 |
| 28 | 750 | 1400 | 2750 | 1500 | 3000 | 12000 | 11000 |
| 30 | 500 | 970 | 2200 | 1500 | 3000 | 12000 | 12000 |
| 35 | 750 | 1400 | 2750 | 1500 | 3000 | 13000 | 13000 |
| 40 | 750 | 1400 | 2750 | 1500 | 3000 | 13000 | 13000 |
| 45 | 500 | 970 | 2200 | 1500 | 3000 | 14000 | 14000 |
| 50 | 750 | 1400 | 2750 | 1500 | 3000 | 14000 | 14000 |
| 60 | 750 | 1400 | 2750 | 1500 | 3000 | 15000 | 14000 |
| 70 | 750 | 1400 | 2750 | 1500 | 3000 | 15000 | 14000 |
| 80 | 750 | 1400 | 2750 | 1500 | 3000 | 15000 | 14000 |
| 90 | 500 | 970 | 2200 | 1500 | 3000 | 15000 | 14000 |
| 100 | 500 | 970 | 2200 | 1500 | 3000 | 15000 | 14000 |
Frame
size |
Stage |
Ratio | Maximum radial load |
Maximum axial load | Weight | Moment of inertia (≦φ19) | Moment of inertia (≦φ28) | Moment of inertia (≦φ38) | Moment of inertia (≦φ48) |
| [N] | [N] | [kg] | [kgcm2] | [kgcm2] | [kgcm2] | [kgcm2] |
180 |
1 Single | 3 | 15000 | 14000 | 36 | - | 44 | 66 | 130 |
| 4 | 15000 | 14000 | - | 28 | 50 | 110 |
| 5 | 15000 | 14000 | - | 22 | 44 | 100 |
| 6 | 15000 | 14000 | - | 18 | 41 | 100 |
| 7 | 15000 | 14000 | - | 16 | 38 | 99 |
| 8 | 15000 | 14000 | - | 15 | 37 | 97 |
| 9 | 15000 | 14000 | - | 14 | 36 | 97 |
| 10 | 15000 | 14000 | - | 14 | 36 | 96 |
2 Double | 15 | 15000 | 14000 | 37 | 4.7 | 12 | 34 | - |
| 16 | 15000 | 14000 | 5.4 | 13 | 35 | - |
| 20 | 15000 | 14000 | 4.4 | 12 | 34 | - |
| 25 | 15000 | 14000 | 4.2 | 12 | 34 | - |
| 28 | 15000 | 14000 | 4.9 | 13 | 35 | - |
| 30 | 15000 | 14000 | 3.2 | 11 | 33 | - |
| 35 | 15000 | 14000 | 4.0 | 12 | 34 | - |
| 40 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 45 | 15000 | 14000 | 4.0 | 12 | 34 | - |
| 50 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 60 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 70 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 80 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 90 | 15000 | 14000 | 3.1 | 11 | 33 | - |
| 100 | 15000 | 14000 | 3.1 | 11 | 33 | - |
Advantages:
1. Complete range: Straight Teeth Gearbox and Helical Gearbox.
2. Straight Teeth Gearboxes are more efficient and Helical
Gearboxes have a longer service life.
3. Compliant with ISO 9001:2015 quality standards and ISO 14001
environmental standards.
4. We have a comprehensive shipping and after-sales service to
ensure the quality of our products.
5. If you need a large number of purchases, you can contact us to
obtain preferential prices.
