Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer

Nidec Shimpo Durable Reducer Planetary Gearbox VRS 060B Planetary Gearbox Reducer

Product Description:

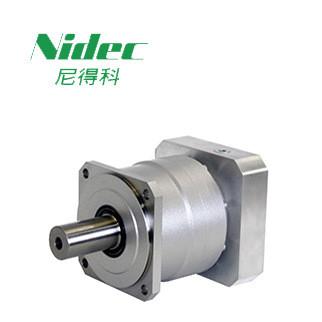

Nidec Shimpo Gearbox is an industrial gearbox solution featuring robust gearbox technology. This product series is the VRS Series, manufactured by Nidec Shimpo. It is made of sturdy iron materials, and weighs 5KG. This Nidec Shimpo Gearbox provides reliable and efficient industrial gearbox solutions for customers.

The Nidec Shimpo Gearbox is known for its superior quality and durability. It is designed to be robust and reliable, and can withstand the toughest industrial conditions. This gearbox technology is also highly reliable, and provides superior performance in various applications. This gearbox is a great choice for industrial gearbox solutions, and can help customers achieve their goals.

Technical Parameters:

Frame Size	Stage	Ratio	Nominal Output torque	Maximum Output torque	Emergency stop torque	Nominal Input speed	Maximum Input speed	Permitted Radial load	Permitted Axial load
Frame Size	Stage	Ratio	[Nm]	[Nm]	[Nm]	[rpm]	[rpm]	[N]	[N]
060B	1 Single	3	18	35	80	3000	6000	1700	2300
		4	27	50	100	3000	6000	1900	2500
		5	27	50	100	3000	6000	2000	2700
		6	27	50	100	3000	6000	2100	2700
		7	27	50	100	3000	6000	2200	2700
		8	27	50	100	3000	6000	2300	2700
		9	18	35	80	3000	6000	2400	2700
		10	18	35	80	3000	6000	2400	2700
	2 Double	15	18	35	80	3000	6000	2800	2700
		16	27	50	100	3000	6000	2800	2700
		20	27	50	100	3000	6000	3000	2700
		25	27	50	100	3000	6000	3000	2700
		28	27	50	100	3000	6000	3000	2700
		30	18	35	80	3000	6000	3000	2700
		35	27	50	100	3000	6000	3000	2700
		40	27	50	100	3000	6000	3000	2700
		45	18	35	80	3000	6000	3000	2700
		50	27	50	100	3000	6000	3000	2700
		60	27	50	100	3000	6000	3000	2700
		70	27	50	100	3000	6000	3000	2700
		80	27	50	100	3000	6000	3000	2700
		90	18	35	80	3000	6000	3000	2700
		100	18	35	80	3000	6000	3000	2700

Frame Size	Stage	Ratio	Maximum Radial load	Maximum Axial load	Weight	Moment Of inertia ≤8	Moment Of inertia ≤14	Moment Of inertia ≤19
Frame Size	Stage	Ratio	[N]	[N]	[kg]	[Kgc㎡]	[Kgc㎡]	[Kgc㎡]
060B	1 Single	3	3000	2700	1.6	0.15	0.23	0.44
		4	3000	2700		0.10	0.18	0.39
		5	3000	2700		0.080	0.16	0.37
		6	3000	2700		0.070	0.15	0.36
		7	3000	2700		0.064	0.14	0.35
		8	3000	2700		0.060	0.14	0.35
		9	3000	2700		0.058	0.14	0.35
		10	3000	2700		0.056	0.14	0.34
	2 Double	15	3000	2700	1.8	0.055	0.14	-
		16	3000	2700		0.057	0.14	-
		20	3000	2700		0.054	0.13	-
		25	3000	2700		0.053	0.13	-
		28	3000	2700		0.055	0.14	-
		30	3000	2700		0.049	0.13	-
		35	3000	2700		0.053	0.13	-
		40	3000	2700		0.049	0.13	-
		45	3000	2700		0.053	0.13	-
		50	3000	2700		0.049	0.13	-
		60	3000	2700		0.049	0.13	-
		70	3000	2700		0.049	0.13	-
		80	3000	2700		0.049	0.13	-
		90	3000	2700		0.049	0.13	-
		100	3000	2700		0.049	0.13	-

Applications:

Nidec Shimpo Gearbox is a precision gearbox solution designed for high reliability and maximum performance. This gearbox is made with advanced technology from Nidec, a Japanese manufacturer known for its innovative products.

The Nidec Shimpo Gearbox is a reliable, high-performance solution for robotic, automation equipment, and CNC machines. With its precision design and long-term reliability, it is the ideal choice for high-precision applications. It is a great choice for those who need a reliable, efficient, and cost-effective gearbox solution.
