    BK15 BF15 Ball Screw Fixed Ends Support Unit With Angular Ball Bearing

    Ask Lasest Price
    Brand Name : ZANE
    Model Number : BKBF15
    Certification : CE,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100,000 pcs per month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    BK15 BF15 Ball Screw Fixed Ends Support Unit With Angular Ball Bearing

    BK15 BF15 Ball Screw Fixed Ends Support Unit With Angular Ball Bearing


    Mounting method of ball screw support:


    (1) fixed to the threaded rod on the fixed side.
    (2) the fixed side inserted, tightening the lock nut, fixed with the cushion block and the inner six angle bolts.
    (3) the supporting side bearing is fixed on the threaded rod shaft with a stop ring and is loaded into the bearing block.

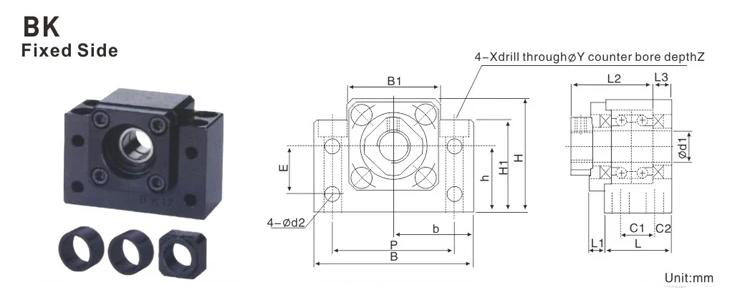

    Typed1LL1L2L3C1C2BHb±0.02h±0.02B1H1EPd2XYZ
    BK1010255295136603930223432.515465.56.610.85
    BK1212255295136604330253432.518465.56.610.81.5
    BK151527632615670483528403818545.56.6116.5
    BK171735944719886644339505528686.69148.5
    BK202035843819888604434525022706.69148.5
    BK2525421254922101068053486470338591117.511
    BK30304514619231112889645176783310211142013
    BK353550146712261214096705288793511411142013
    BK40406118761533141601108060100903713014182617.5


    Typed1LBHb±0.02h±0.02B1H1EPd2XYZ
    BF10820603930223432.515465.56.610.85
    BF121020604330253432.518465.56.610.81.5
    BF15152070483528403818545.56.6116.5
    BF17172386644339505528686.69148.5
    BF20202688604434525022706.69148.5
    BF2525301068053486470338591117.511
    BF30303212889645176783310211142013
    BF35353214096705288793511411142013
    BF4040371601108060100903713014182617.5

    The Support Unit comes in six types: models EK, FK, EF, and FF, which are standardized for standard Ball Screw assembly provided with finished shaft ends, and models BK and BF, which are standardized for ball screws in general. The Support Unit on the fixed side contains a high precision JIS Class 5-compliant angular contact ball bearing provided with an adjusted preload.
