1, Rack length: the general conventional products are made of
standard 1 meter length, which can be unlimited connection
according to the application needs, and can also be cut into a
shorter length according to the need, which is very beneficial to
the storage of the rack, effective supply, reduce costs and achieve
interchange.
2. The connection of the rack uses special tools to accurately
transfer the position accuracy of the front segment of the rack to
the next segment of the rack through the teeth of the rack.
3, Precision grade: European standard 6 h25, 7 h25, 8 h25, 9 h25,
10 h25. JIS Level 2, JIS Level 3, JIS Level 4, JIS Level 5, JIS6.
4. According to international standards, any 300mm accuracy error
is less than 0.022mm.
5. Rack modulus: 0.5 ~ 10M, gear 0.5 ~ 10M.
6. Straight tooth/oblique tooth type, suitable for various
conditions of use; The oblique tooth type is right-handed Angle
19°31 '42 ", and can also be customized.
7. There are heat treatment type/tempering treatment type, grinding
level/finishing level, the same modulus, a variety of strengths, a
variety of precision.
8. Square/round appearance, easy to integrate.

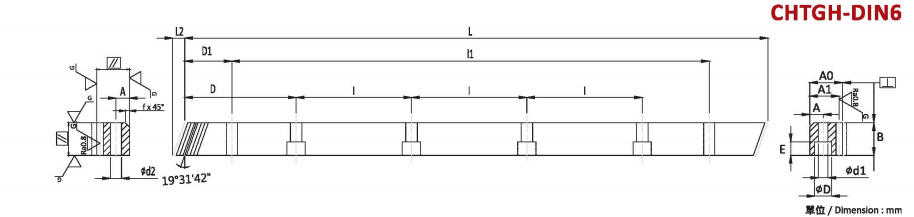

Code | Module | L | L2 | No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | dl | 0D | E | D1 | I1 | d2 | f | Fta kN | KG | |
CHTGH01505-DIN6 | 1.5 | 500.00 | 6.70 | 100 | 19 | 19 | 17.5 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 1.5 | 4.84 | 1.3 |
CHTGH01510-DIN6 | 1.5 | 1000.00 | 6.70 | 200 | 19 | 19 | 17.5 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 1.5 | 4.84 | 2.6 |
CHTGH02005-DIN6 | 2 | 500.00 | 8.50 | 75 | 24 | 24 | 22.0 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 8.15 | 2.1 |
CHTGH02010-DIN6 | 2 | 1000.00 | 8.50 | 150 | 24 | 24 | 22.0 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 8.15 | 4.1 |
CHTGH02020-DIN6 | 2 | 2000.00 | 8.50 | 300 | 24 | 24 | 22.0 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 8.15 | 8.2 |
CHTGH02505-DIN6 | 2.5 | 500.00 | 8.50 | 60 | 24 | 24 | 21.5 | 62.5 | 125 | 4 | 9 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 10.19 | 2.1 |
CHTGH02510-DIN6 | 2.5 | 1000.00 | 8.50 | 120 | 24 | 24 | 21.5 | 62.5 | 125 | 8 | 9 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 10.19 | 4.1 |
CHTGH02520-DIN6 | 2.5 | 2000.00 | 8.5 | 240 | 24 | 24 | 21.5 | 62.5 | 125 | 16 | 9 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 10.19 | 8.2 |
CHTGH03005-DIN6 | 3 | 500.00 | 10.30 | 50 | 29 | 29 | 26.0 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.00 | 7.7 | 2 | 14.77 | 3.0 |
CHTGH03010-DIN6 | 3 | 1000.00 | 10.30 | 100 | 29 | 29 | 26.0 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.00 | 7.7 | 2 | 14.77 | 6.0 |
CHTGH03020-DIN6 | 3 | 2000.00 | 10.30 | 200 | 29 | 29 | 26.0 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.00 | 7.7 | 2 | 14.77 | 12.0 |
CHTGH04005-DIN6 | 4 | 506.67 | 13.80 | 38 | 39 | 39 | 35.0 | 62.5 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.00 | 7.7 | 2 | 26.49 | 5.5 |
CHTGH04010-DIN6 | 4 | 1000.00 | 13.80 | 75 | 39 | 39 | 35.0 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.40 | 7.7 | 2 | 26.49 | 10.8 |
CHTGH04020-DIN6 | 4 | 2000.00 | 13.80 | 150 | 39 | 39 | 35.0 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.40 | 7.7 | 2 | 26.49 | 21.6 |
CHTGH05005-DIN6 | 5 | 500.00 | 17.40 | 30 | 49 | 39 | 34.0 | 62.5 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.00 | 11.7 | 3 | 41.60 | 6.8 |
CHTGH05010-DIN6 | 5 | 1000.00 | 17.40 | 60 | 49 | 39 | 34.0 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.00 | 11.7 | 3 | 41.60 | 13.6 |
CHTGH05020-DIN6 | 5 | 2000.00 | 17.40 | 120 | 49 | 39 | 34.0 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.00 | 11.7 | 3 | 41.60 | 27.2 |
CHTGH06005-DIN6 | 6 | 500.00 | 20.90 | 25 | 59 | 49 | 43.0 | 62.5 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.00 | 15.7 | 3 | 60.11 | 10.3 |
CHTGH06010-DIN6 | 6 | 1000.00 | 20.90 | 50 | 59 | 49 | 43.0 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.00 | 15.7 | 3 | 60.11 | 20.5 |
CHTGH06020-DIN6 | 6 | 2000.00 | 20.9 | 100 | 59 | 49 | 43.0 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.00 | 15.7 | 3 | 60.11 | 41.1 |
CHTGH08005-DIN6 | 8 | 480.00 | 28.00 | 18 | 79 | 79 | 71.0 | 60.0 | 120 | 4 | 25 | 22 | 33 | 21 | 120 | 240.00 | 19.7 | 4 | 107.31 | 21.3 |
CHTGH08010-DIN6 | 8 | 960.00 | 28.00 | 36 | 79 | 79 | 71.0 | 60.0 | 120 | 8 | 25 | 22 | 33 | 21 | 120 | 720.00 | 19.7 | 4 | 107.31 | 42.6 |
CHTGH08020-DIN6 | 8 | 1920.00 | 28.00 | 72 | 79 | 79 | 71.0 | 60.0 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.00 | 19.7 | 4 | 107.31 | 85.1 |
CHTGH10005-DIN6 | 10 | 500.00 | 35.11 | 15 | 99 | 99 | 89.0 | 62.5 | 125 | 4 | 32 | 33 | 48 | 32 | 125.0 | 250.00 | 19.7 | 5 | 168.10 | 64.8 |
CHTGH10010-DIN6 | 10 | 1000.00 | 35.11 | 30 | 99 | 99 | 89.0 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.00 | 19.7 | 5 | 168.10 | 69.6 |
(1) Suitable for CNC tools, milling machines, drilling machines, lathes, processing centers, cutting machines, woodworking machines, welding machines, stone machinery, etc. with heavy load, high precision, high rigidity, high speed and long travel.
(2) Suitable for factory automation rapid loading mechanism, robot arm grasping mechanism, intelligent warehouse, etc
![]() |
